As the automotive industry rapidly transitions toward electrification and connectivity, the demand for reliable automotive connector solutions has never been higher. Among the critical components enabling this evolution is the JP15223-1.0/3.0-21, a 22Pin connector designed for universal vehicle compatibility. This article explores why this connector stands out in modern automotive wiring harness systems, focusing on its precision engineering, versatility, and durability.
1. 22Pin Configuration: Balancing Efficiency and Functionality
The 22Pin connector design of the JP15223-1.0/3.0-21 strikes a balance between complexity and simplicity, making it ideal for today’s multi-electronic vehicle architectures. With 22 distinct pins, it efficiently distributes power, data, and communication signals across critical vehicle systems, including infotainment, ADAS, lighting, and powertrain controls. This configuration eliminates the need for oversized harnesses while ensuring compatibility with both traditional and next-generation ECUs.

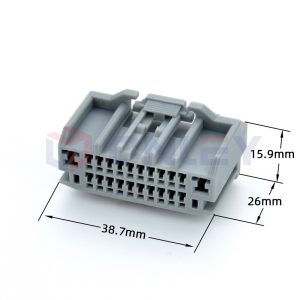

JP15223-1.0/3.0-21
2. Universal Vehicle Fit: Simplifying OEM and Aftermarket Operations
Engineered for universal vehicle connector applications, the JP15223-1.0/3.0-21 is compatible with a wide range of makes and models, from compact cars to light commercial vehicles. This universality reduces inventory costs for manufacturers by standardizing on a single connector type, streamlines supply chains, and simplifies aftermarket replacements. Whether repairing a sedan or upgrading a truck, technicians can rely on this connector to fit seamlessly into existing wiring harnesses.
3. Durability Engineered for Harsh Environments
Automotive connectors face extreme conditions daily—vibration, temperature fluctuations, moisture, and mechanical stress. The JP15223-1.0/3.0-21 addresses these challenges with:
- High-Temperature Resistance: Gold-plated contacts and heat-resistant thermoplastic housing ensure stable performance from -40°C to 125°C.
- Vibration and Shock Mitigation: Precision-molded strain relief and latching mechanisms minimize connection loss under dynamic driving conditions.
- IP67-Level Sealing: O-ring seals prevent water ingress and dust intrusion, safeguarding against road debris and weather.
4. Precision Engineering for Reliable Signal Integrity
Beyond physical durability, the JP15223-1.0/3.0-21 excels in signal quality. Its 22-pin array features tight pin spacing (1.0mm/3.0mm), reducing crosstalk and ensuring minimal signal attenuation. This precision is critical for ADAS systems, where even microsecond delays can impact safety. The connector’s mating force is calibrated for easy installation while maintaining a secure connection, preventing premature disconnections.
Conclusion
For automotive manufacturers and suppliers seeking a versatile, durable, and efficient automotive wiring harness connector, the JP15223-1.0/3.0-21 emerges as a leading solution. Its 22Pin design, universal fit, and rugged construction make it a cornerstone of modern vehicle electrical systems, supporting both current ICE vehicles and future EV platforms. To learn more about integrating this connector into your next project, reach out to our team for technical specifications and sample testing.
